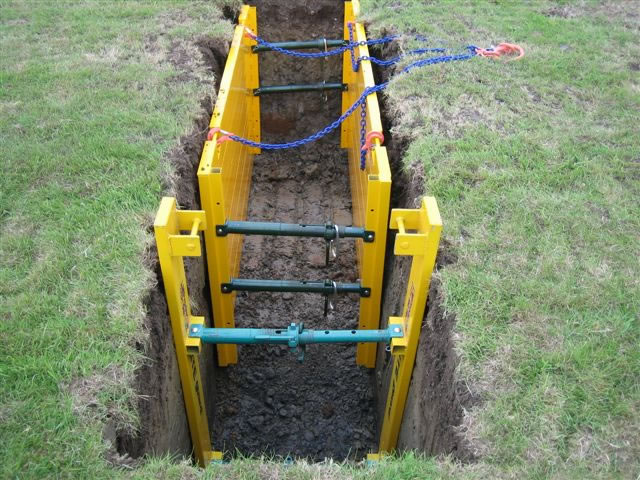

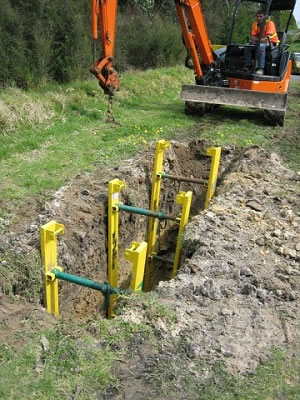

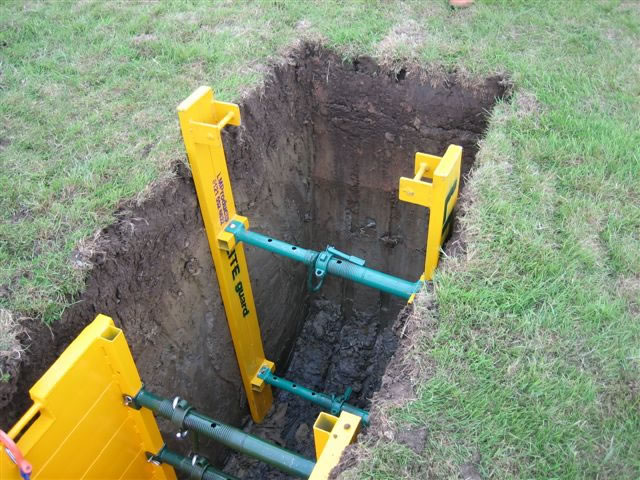

LITE guard produces a range of aluminium Soldier Sets. These Soldier Sets are great for working around services, or small excavations. A minimum of 2 sets required when trench shoring. Suitable for mini excavators and hand installation.
These units replace conventional timber soldier sets and are 7 times stiffer and 8 times stronger than F17 hard wood.
If using timber soldier sets remember that the timber should be green hardwood less than 3 months of age. This timber will not snap under load like dry timber. It will actually bend and make a noise as it comes under load prior to breaking, providing advance warning of imminent danger.
Why take any risk that these could fail when you can be sure of your safety with LITE shore Soldier Sets!
Main Features
Lightweight
Stronger than hardwood
Suited for small excavations
| Panel Sizes | Weights | kPa Rating |
|---|---|---|
| 1800mm x 200mm x 45mm | 10kg | 20kPa |
| 2400mm x 200mm x 45mm | 13kg | 20kPa |
| 3000mm x 200mm x 45mm | 15kg | 20kPa |

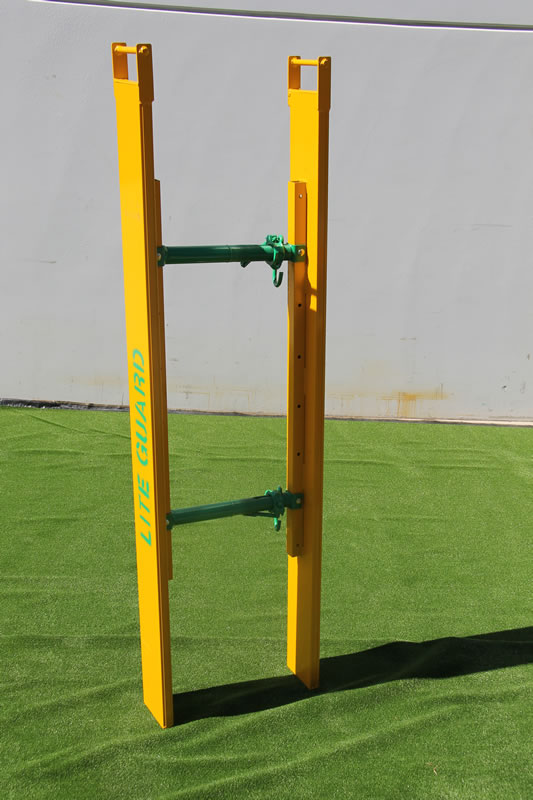

Fixed Spreader Bars / Struts
Custom made upon request
Adjustable Spreader Bars / Struts
600mm to 900mm
1000mm to 1800mm
| Panel Type | Panel Length mm | Panel Height mm | Safe Working Load (kPa) | Panel Thickness mm | Under Strut Clearance | Internal Clearance Strut to Strut mm | Unit weight Incl. 1000mm Struts |
|---|---|---|---|---|---|---|---|
| Unit | 200 | 1800 | 20 | 45 | Various | N/A | 35kgs |
| Unit | 200 | 2400 | 20 | 45 | Various | N/A | 38kgs |
| Unit | 200 | 3000 | 20 | 45 | Various | N/A | 49kgs |
LITE shore Soldier Sets Meet Global Standards
AS/NZ 4744.1 - 2000, BS EN 13331.1 & 2 - 2002 (British & European Standard), OSHA Sub Part P
