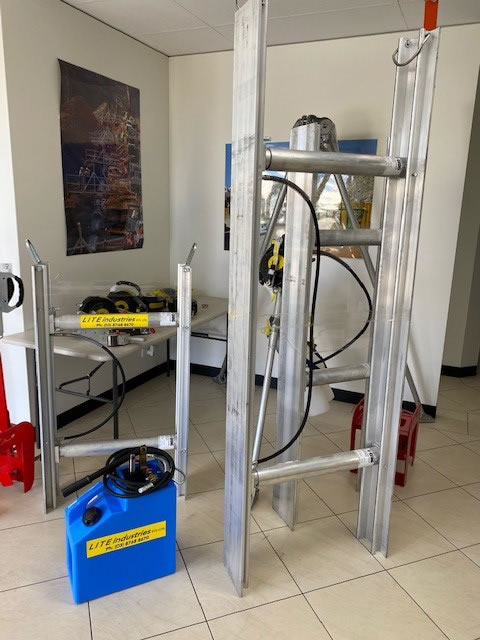

LITE guard is the Australian Distributor for Pacific Shoring of Vertishore Vertical Aluminium Hydraulic Shores.
Vertical Aluminium Hydraulic Shores are used to support the sides of a trench and prevent a trench collapse. These lightweight shores can be transported, installed, and removed safely and easily.
The shores are hinged so they can be folded when lowered into the trench and then opened. After, it is pressurized using a hydraulic hand pump which prevents cave-ins from happening. The hydraulic fluid is water-soluble, environmentally safe, and biodegradable.
These are typically used in linear trench applications and are installed outside the excavation. This tool is useful for repair and utility work such as sewer and water lines as well as any other projects that require effective spot bracing.
Vertical Aluminium Hydraulic Shores Tabulated Data
Learn more about the Vertical Aluminium Hydraulic Shores on the Pacific Shoring Website
Vertishore Pricing
| Item | Price | |
|---|---|---|
| 1200mm H Vertical Shoring complete with 2 x 550 to 900 Cylinders | 1 set | $2,311.40+ gst |
| 1200mm H Vertical Shoring complete with 2 x 700 to 1200 Cylinders | 1 set | $2,464.80+ gst |
| 1200mm H Vertical Shoring complete with 2 x 1000 to 1600 Cylinders | 1 set | $2,618.20+ gst |
| 1200mm H Vertical Shoring complete with 2 x 1300 to 2200 Cylinders | 1 set | $2,889.90+ gst |
| 1500mm H Vertical Shoring complete with 2 x 550 to 900 Cylinders | 1 set | $2,499.90+ gst |
| 1500mm H Vertical Shoring complete with 2 x 700 to 1200 Cylinders | 1 set | $2,589.60+ gst |
| 1500mm H Vertical Shoring complete with 2 x 1000 to 1600 cylinders | 1 set | $2,967.90+ gst |
| 1500mm H Vertical Shoring complete with 2 x 1300 to 2200 Cylinders | 1 set | $3,014.70+ gst |
| 1800mm H Vertical Shoring complete with 2 x 550 to 900 Cylinders | 1 set | $2,723.50+ gst |
| 1800mm H Vertical Shoring complete with 2 x 700 to 1200 Cylinders | 1 set | $2,813.20+ gst |
| 1800mm H Vertical Shoring complete with 2 x 1000 to 1600 Cylinders | 1 set | $3,121.30+ gst |
| 1800mm H Vertical Shoring complete with 2 x 1300 to 2200 Cylinders | 1 set | $3,238.30+ gst |
| 2100mm H Vertical Shoring complete with 2 x 550 to 990 Cylinders | 1 set | $3,057.60+ gst |
| 2100mm H Vertical Shoring complete with 2 x 700 to 1200 Cylinders | 1 set | $3,285.10+ gst |
| 2100mm H Vertical Shoring complete with 2 x 1000 to 1600 Cylinders | 1 set | $3,439.80+ gst |
| 2100mm H Vertical Shoring complete with 2 x 1300 to 2200 Cylinders | 1 set | $3,710.20+ gst |
| 450mm Extensions | $435.50+ gst | |
| Plastic Pumps | $2,130.70+ gst | |
| Metal Pumps | $2,323.10+ gst | |
| Release Tools | $123.50+ gst | |
| Lifting Hook | $123.50+ gst |
Vertishore Gallery
